Holz T 510
$48900.00

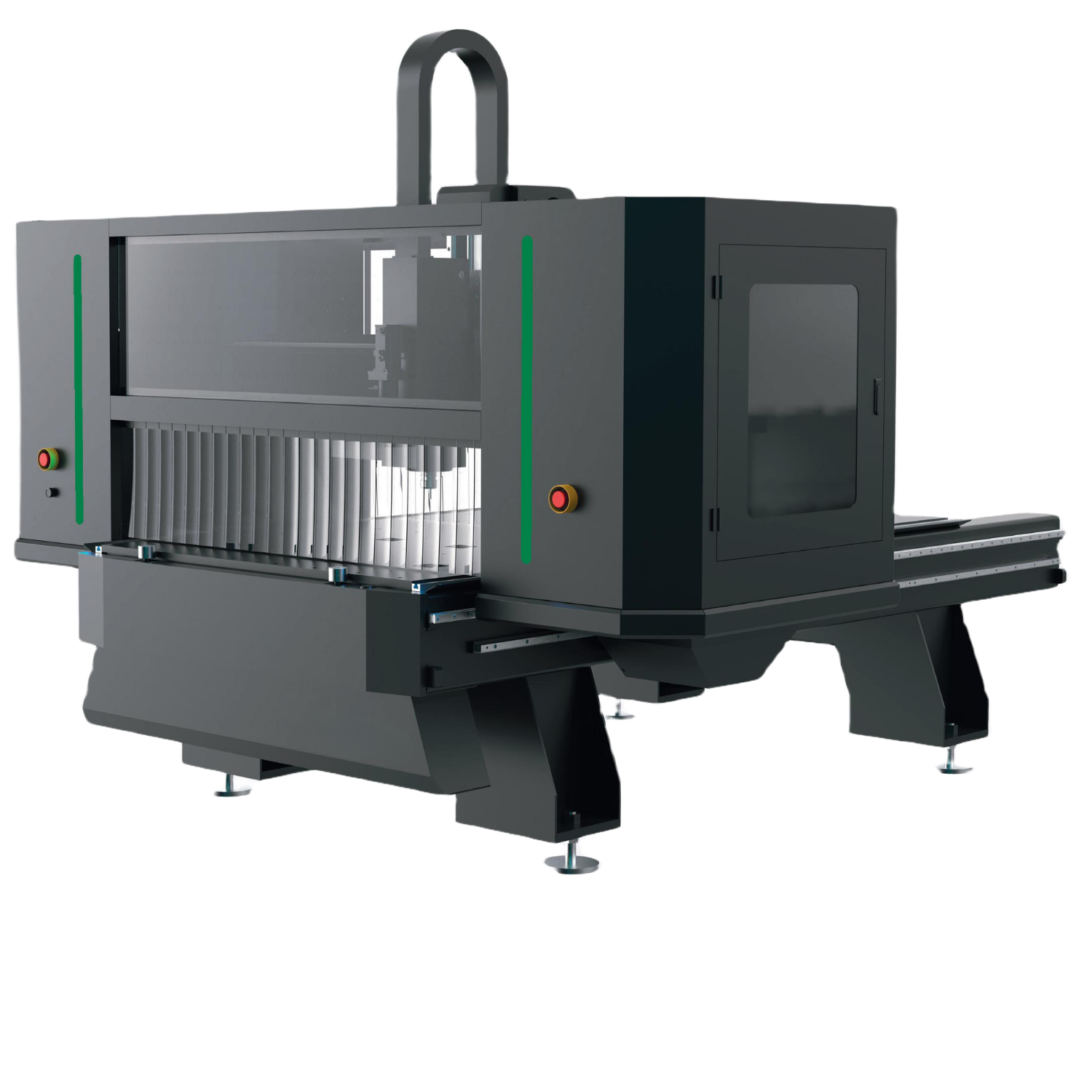

Holz T 510 CNC Router
* Standalone Machine
*Load & Unload Can not be added
Heavy Duty Welded Steel Frame
Working Area: 1550 x 3050 x 200mm
Positioning Speed: 80 m/min
Machinery accuracy: +- .05mm/m
Spindle: Hiteco 12hp air cooled
ISO 30 Tool Holder
Boring Head: HSD 5+4 Vertical Drilling
Operating System: Syntec PC Version
Tool Changer: 12 Position Carousel
Working Table: Multi Hole Bakelite Vacuum table
Pop up pins for material positioning
WMH Helical Rack & Pinion. Hiwin Linear Rail
Drives: Yaskawa Servo Drive System, with Shimpo planetary reducer
Voltage: 220v, 3 phase, 60hz
-Auto Lubrication
- Enclosure
- Two VTLF 2.250 7.5hp Becker Vacuum Pumps
